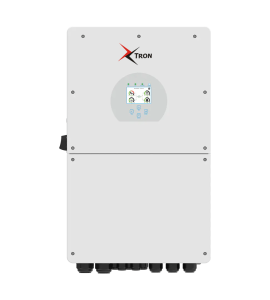

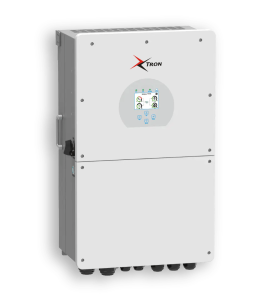

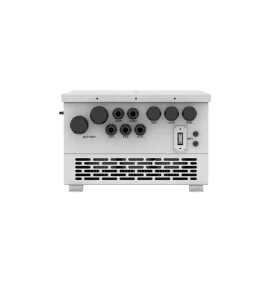

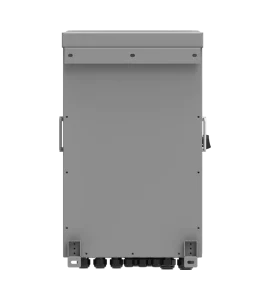

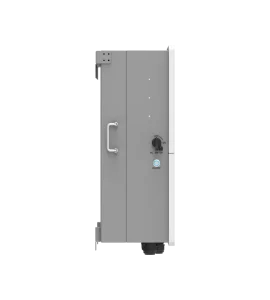

Higher yields / Safe & Reliable / Smart / User-friendlyDS 12/14/16K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via DS 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
Smart Monitoring PlatformThanks to the smart monitoring platform, Invermaxtron full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
| Model | DS-12K-SG01LP1-EU | DS-14K-SG01LP1-EU | DS-16K-SG01LP1-EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Lithium-ion | ||
| Battery Voltage Range (V) | 40~60 | ||
| Max. Charging Current (A) | 220 | 250 | 290 |
| Max. Discharging Current (A) | 220 | 250 | 290 |
| Charging Curve | 3 Stages / Equalization | ||
| External Temperature Sensor | Yes | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 15600 | 18200 | 20800 |
|
Max. DC Input Voltage (V) |
500 | ||
|
Start-up Voltage (V)
|
125 |
||
| MPPT Range (V) | 150~425 | ||
|
Rated DC Input Voltage (V) |
370 |
||
| PV Input Current (A) | 26+26+26 | ||
| Max. PV ISC (A) |
44+44+44 |
||
| No.of MPPT Trackers | 3 | ||
| No.of Strings Per MPPT Tracker | 2+2+2 | ||
|
AC Output Data |
|||
|
Rated AC Output Active Power (W)
|
12000 |
14000 | 16000 |
|
Max AC Output Active Power (W)
|
13200 |
15400 | 17600 |
|
Rated AC Output Current (A) |
54.5/52.2 |
63.6/60.9 | 72.7/69.6 |
|
Max AC Output Current (A)
|
60/57.4 |
70/67 | 80/76.5 |
|
Max. Continuous AC Passthrough (A)
|
100 |
||
|
Peak Power (off grid) |
2 times of rated power, 10S |
||
|
Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
||
|
Rated Input/Output Voltage/Range(V)
|
220/230 0.85Un-1.1Un
|
||
|
Rated Input/Output Grid Frequency/Range
|
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
|
||
|
Grid Connection Form
|
L+N+PE
|
||
|
Total Harmonics Current Distortion (THDi)
|
<3% (of nominal power) |
||
|
DC Current Injection
|
<0.5% 1n |
||
|
Backup Data
|
|||
|
Backup Power (W)
|
10000
|
12000
|
14000
|
|
Backup Rated Current (A)
|
45.5/43.5
|
54.5/52.2
|
63.6/60.9
|
|
Backup UPS
|
4ms Automatic switchover time
|
||
Efficiency | |
Max. Efficiency | 97.60% |
Euro Efficiency | 96.50% |
MPPT Efficiency | 99.90% |
Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection |
Over Voltage Category | DC Type II/AC Type III |
| Certifications and Standards | |
| Grid Regulation |
IEC 61727, IEC 62116, AS 4777.2, NRS 097 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
General Data | |
Operating Temperature Range (℃) | -45~60℃, >45℃ Derating |
Cooling | Smart Cooling |
Noise (dB) | ≤30 dB |
Communication with BMS | RS485; CAN |
Weight (kg) | 48.5 |
Cabinet Size (WxHxD mm) | 464×763×282 (Excluding Connectors and Brackets) |
Protection Degree | IP65 |
Installation Style | Wall-mounted |
Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
