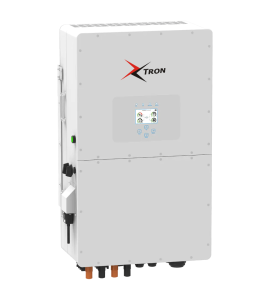

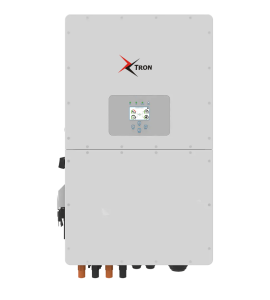

Higher yields / Safe & Reliable / Smart / User-friendlyDS-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 is a brand new series of three phase hybrid inveter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
Smart Monitoring PlatformThanks to the smart monitoring platform, Invermaxtron full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Model | DS-29.9K-SG01HP3-EU-BM3 | DS-30K-SG01HP3-EU-BM3 | DS-35K-SG01HP3-EU-BM3 | DS-40K-SG01HP3-EU-BM4 | DS-50K-SG01HP3-EU-BM4 |
Battery Input Data | |||||
Battery Type | Lithium-ion | ||||
Battery Voltage Range (V) | 160~800 | ||||
Max. Charging Current (A) | 50+50 | ||||
Max. Discharging Current (A) | 50+50 | ||||
Number of Battery input | 2 | ||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 38870 | 39000 | 45500 | 52000 | 65000 | |
Max. DC Input Voltage (V) | 1000 | |||||
Start-up Voltage (V) | 180 | |||||
MPPT Range (V) | 150-850 | |||||
Full Load DC Voltage Range (V) | 360-850 | 360-850 | 420-850 | 360-850 | 450-850 | |
Rated DC Input Voltage (V) | 600 | |||||
PV Input Current (A) | 36+36+36 | 36+36+36 | 36+36+36 | 36+36+36+36 | ||
| Max. PV ISC (A) | 55+55+55 | 55+55+55 | 55+55+55 | 55+55+55+55 | ||
No. of MPP Trackers | 3 | 4 | ||||
No. of Strings per MPP Tracker | 2+2+2 | 2+2+2+2 | ||||
AC Output Data | |||||
Rated AC Output and UPS Power (W) | 29900 | 30000 | 35000 | 40000 | 50000 |
Max. AC Output Power (W) | 29900 | 33000 | 38500 | 44000 | 55000 |
AC Output Rated Current (A) | 45.4/43.4 | 45.5/43.5 | 53.1/50.8 | 60.7/58 | 75.8/72.5 |
Max. AC Output Current (A) | 45.4/43.4 | 50/47.8 | 58.4/55.8 | 66.7/63.8 | 83.4/79.7 |
Max. AC Current (A) | 60 | 60 | 60 | 70 | 83.3 |
Max. Continuous AC Passthrough (A) | 200 | ||||
Peak Power (off grid) | 1.5 times of rated power, 10 S | ||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
Rated Input/Output Voltage/Range(V) | 220/380, 230/400 0.85Un-1.1Un | ||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||||
Grid Connection Form | 3L+N+PE | ||||
Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | ||||
DC Current Injection | <0.5% ln | ||||
Efficiency | |
Max. Efficiency | 97.60% |
Euro Efficiency | 97.00% |
MPPT Efficiency | 99.90% |
Protection | |
Integrated | Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional) |
Over Voltage Category | DC Type II / AC Type Ⅲ |
Certifications and Standards | |
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
|
General Data |
|
|
Operating Temperature Range (℃) |
-40 to +60℃, >45℃ Derating
|
|
Cooling |
Smart cooling |
|
Noise (dB) |
≤65 dB |
|
Communication with BMS |
CAN |
|
Weight (kg) |
80 |
|
Cabinet Size (WxHxD mm)
|
527×894×294 (Excluding Connectors and Brackets)
|
|
Protection Degree |
IP65 |
|
Installation Style |
Wall-mounted |
|
Warranty |
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
