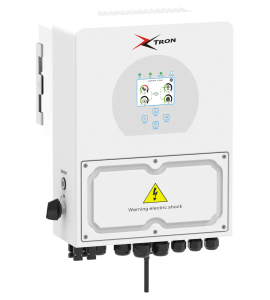

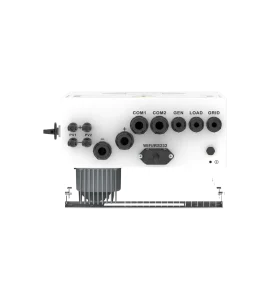

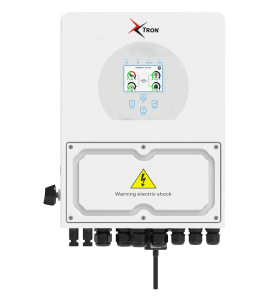

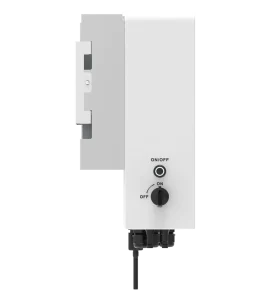

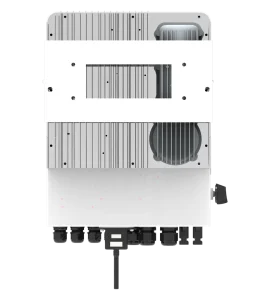

Higher yields / Safe & Reliable / Smart / User-friendlyDS 3/6K-SG04，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via DS 3/6K-SG04. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout.
It equipped with RS485/CAN port for battery communication.
The New DS-3K-SG04LP1 hybrid inverter adopts 24V battery, greatly improving your system safety.
Smart Monitoring PlatformThanks to the smart monitoring platform, Invermaxtron full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.
Model | DS-3K-SG04LP1-24-EU | DS-3K-SG04LP1-EU | DS-3.6K-SG04LP1-EU | DS-5K-SG04LP1-EU | DS-6K-SG04LP1-EU |
Battery Input Data | |||||
Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) | 20~30 | 40~60 | 40~60 | 40~60 | 40~60 |
Max. Charging Current (A) | 140 | 70 | 90 | 120 | 135 |
Max. Discharging Current (A) | 140 | 70 | 90 | 120 | 135 |
Charging Curve | 3 Stages / Equalization | ||||
External Temperature Sensor | Yes | ||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||||
|
PV String Input Data |
|||||
|
Max. DC Input Power (W) |
3900 |
3900 |
4680 | 6500 | 7800 |
|
Rated PV Input Voltage (V)
|
370(125~500) |
||||
|
Start-up Voltage (V)
|
125 |
||||
|
MPPT Voltage Range (V)
|
150~425 |
||||
|
Full load DC voltage range(V) |
300~425 |
||||
|
PV Input Current (A) |
13 |
13+13 | |||
| Max. PV ISC (A) |
17 |
17+17 |
|||
|
No.of MPPT Trackers |
1 |
2 |
|||
|
No.of Strings Per MPPT Tracker |
1 |
1+1 | |||
AC Output Data | |||||
Rated AC Output and UPS Power (W) | 3000 | 3600 | 5000 | 6000 | |
Max AC Output Active Power (W) | 3300 | 3690 | 5500 | 6600 | |
AC Output Rated Current (A) | 13.6/13 | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 | |
Max. AC Output Current (A) | 15/14.3 | 18/17.2 | 25/23.9 | 30/28.7 | |
Max. Continuous AC Passthrough (A) | 35 | 40 | |||
Peak Power (off grid) | 2 time of rated power, 10 S | ||||
Power Factor Adjustment Range | 0.8 leading to 0.8 lagging | ||||
Rated Input/Output Voltage/Range(V) | 220/230 0.85Un-1.1Un | ||||
Rated Input/Output Grid Frequency/Range | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz | ||||
Grid Connection Form | L+N+PE | ||||
Total Harmonics Current Distortion (THDi) | <3% (of nominal power) | ||||
DC Current Injection | <0.5% In | ||||
Efficiency | |
Max. Efficiency | 97.60% |
Euro Efficiency | 96.50% |
MPPT Efficiency | 99.90% |
|
Protection |
|
|
Integrated
|
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection
|
|
Over Voltage Category
|
DC Type II / AC Type Ⅲ |
Certifications and Standards | |
Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
|
General Data |
||
|
Operating Temperature Range (℃) |
-40 to +60℃, >45℃ Derating
|
|
|
Cooling |
Free Cooling
|
|
|
Noise (dB) |
≤30 dB
|
|
|
Communication with BMS |
RS485; CAN |
|
|
Weight (kg) |
14 |
15 |
|
Cabinet Size (WxHxD mm)
|
330×433×238 (Excluding Connectors and Brackets)
|
|
|
Protection Degree |
IP65 |
|
|
Installation Style |
Wall-mounted |
|
|
Warranty |
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
|
|
