DS-30/33/35/36K-G04 | 30-36kW | Three Phase | 2 MPPT

This new series of three-phase output inverter has wider range of 30kw, 33kw, 36kw than the original series, at the same time still got two integrated MPPTs, allowing two-array to input from different roof orientations. In addition, it allows the system to be monitored and controlled remotely.

iconsSmart Monitoring Platform

Remotely shutdown function

Thanks to the smart monitoring platform, Invermaxtron full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

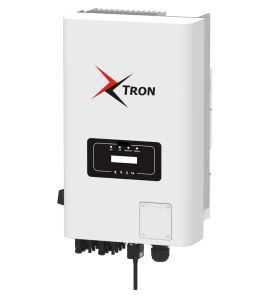

DS-30-33-35-36K-G04 30-36kW

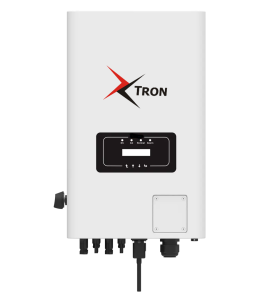

30-36-2

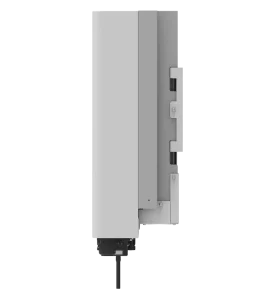

30-36-3

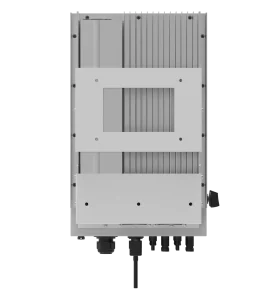

30-36-4

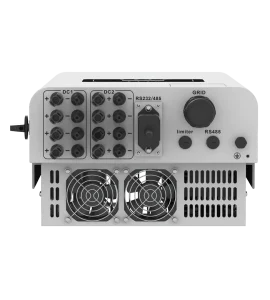

30-36-5
  • 2 MPP tracker, Max. efficiency up to 98.5%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Anti-PID function (Optional)

Technical Specifications

ModelDS-30K-G04DS-33K-G04 DS-35K-G04
DS-36K-G04
Input Side
Max. DC Input Power(kW)3942.945.546.8
Max. DC Input Voltage (V)1000
Start-up DC Input Voltage(V)250
MPPT Operating Range(V) 200~850
Max. DC Input Current(A)40+40
Max. Short Circuit Current (A)60+60
No.of MPP Trackers
2
No.of Strings per MPP Tracker3+ 3
Output Side
Rated Output Power(kW)30333536
Max. Active Power(kW)3336.338.539.6
Rated Output Voltage/Range (V)
3L/N/PE 220/380V, 230/400V 0.85Un-1.1Un (this may vary with grid standards)
Rated Grid Frequency(Hz)50 / 60 (Optional)
Operating PhaseThree phase
Rated AC Grid Output Current(A)45.5/43.550/47.8
53/50.7
54.5/52.2
Max. AC Output Current(A)50/47.955/52.6
58.3/55.8
60/57.4
Output Power Factor0.8 leading to 0.8 lagging
Total Harmonics Current Distortion (THDi)
<3%
DC Injection Current(mA)<0.5%
Grid Frequency Range45~55 or 55~65 (Optional)
Efficiency
Max.Efficiency98.5%
Euro Efficiency97.5%
MPPT Efficiency>99%
Protection
DC Reverse-Polarity Protection Yes
AC Short Circuit Protection Yes
AC Output Overcurrent Protection Yes
Output Overvoltage Protection Yes
Insulation Resistance Protection Yes
Ground Fault Monitoring Yes
Islanding Protection Yes
Temperature Protection Yes
Integrated DC Switch Yes
Remote software upload Yes
Remote change of operating parameters Yes
Surge protection DC Type II / AC Type II
General Data
Cabinet Size (WxHxD mm)
362×577×215 (Excluding Connectors and Brackets)
Weight(kg)23
TopologyTransformerless
Internal Consumption<1W (Night)
Running Temperature-25-65℃, >45℃ Derating
Ingress ProtectionIP65
Noise Emission(Typical)≤50 dB
Cooling ConceptSmart cooling
Permissible Altitude (m)
2000
Warranty5 Years
Grid Connection Standard
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105
Operating Surroundings Humidity0-100%
Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features
Display LCD 1602
Interface RS485/RS232/Wifi/LAN
