DS-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 | 5-25kW | Three Phase | 2 MPPT | Hybrid Inverter | HV Battery Supported

DS 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is a brand new series of three phase hybrid inveter supporting 160-700V HV Battery, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

iconsSmart Monitoring Platform

Remotely shutdown function

Thanks to the smart monitoring platform, Invermaxtron full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

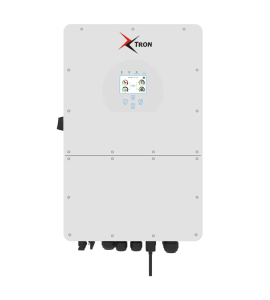

DS-5681012152025K-SG01HP3-EU-AM2 5-25kW Three Phase 2 MPPT Hybrid Inverter HV Battery Supported-min

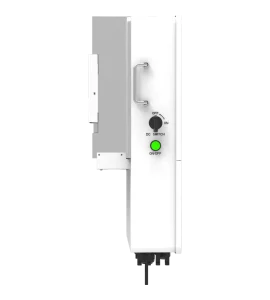

6-15kw.173.1

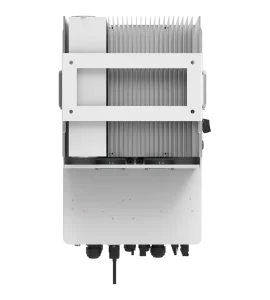

6-15kw.172.1

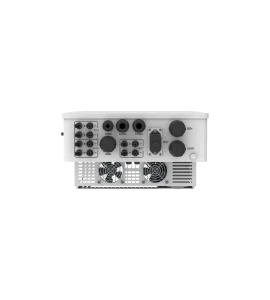

6-15kw.174.1
  • 100% unbalanced output, each phase
  • AC couple to retrofifit existing solar system
  • *Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 50A
  • High voltage battery, higher effificiency
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator

Technical Specifications

Model DS-5K-SG01HP3-EU-AM2 DS-6K-SG01HP3-EU-AM2 DS-8K-SG01HP3-EU-AM2 DS-10K-SG01HP3-EU-AM2 DS-12K-SG01HP3-EU-AM2 DS-15K-SG01HP3-EU-AM2 DS-20K-SG01HP3-EU-AM2 DS-25K-SG01HP3-EU-AM2
Battery Input Data
Battery Type

Lithium-ion
Battery Voltage Range (V)

160~700
Max. Charging Current (A) 30 37 50
Max. Discharging Current (A) 30 37 50
Number of Battery Input
 1
Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W)

6500

7800

10400

13000

 15600 19500

26000
32500

Max. DC Input Voltage (V)

1000

Start-up Voltage (V)

180

 MPPT Range (V)

 150-850

Full Load DC Voltage Range (V)

195-850

195-850

260-850
325-850
340-850
420-850
500-850
625-850

Rated DC Input Voltage (V)

 600

PV Input Current (A)

20+20

 26+20

26+26
Max. PV ISC (A)

30+30

39+30

39+39

No.of MPP Trackers

2
No.of Strings per MPP Tracker

1+1

 2+1

2+2

AC Output Data



Rated AC Output and UPS Power (W)

5000

6000

8000

10000

12000150002000025000

Max. AC Output Power (W)

5500

6600

8800

11000

132001650022000
27500
AC Output Rated Current (A)

7.6/7.3

9.1/8.7

12.2/11.6

15.2/14.5

18.2/17.422.8/21.830.4/29
37.9/36.3
Max. AC Output Current (A)

8.4/8

10/9.6

13.4/12.8

16.7/16

20/19.225/2433.4/31.9
41.7/39.9
Max. Three-phase Unbalanced Output Current(A)

13

13

18

22

253035
41.7
Max. Continuous AC Passthrough (A)

40

80
Peak Power (off grid)
1.5 time of rated power, 10 S
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range(V)
220/380, 230/400 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Grid Connection Form
3L+N+PE
Total Harmonics Current Distortion (THDi)
<3% (of nominal power)
DC current injection
<0.5% In

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Protection

Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)

Output Over Voltage Protection

DC Type II / AC Type Ⅲ

Certifications and Standards

Grid Regulation

IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

General Data

Operating Temperature Range (℃)
-40 to +60℃, >45℃ Derating

Cooling

Free Cooling

Smart cooling

Noise (dB)

≤55 dB

Communication with BMS

 CAN

Weight (kg)

30.5
Cabinet Size (WxHxD mm)
408×638×237 (Excluding Connectors and Brackets)

Protection Degree

IP65

Installation Style

Wall-mounted

Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
