DS-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU | 5-8kW | Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

The series, DS-5/6K-SG01LP1-US DS-7.6/8K-SG01LP1-US/EU, is a single-phase low voltage (48V) hybrid inverter that enables enhanced energy independence and maximizes self-consumption through export limit feature and “time of use” function. With the frequency droop control algorithm, this series product supports single phase and three phase parallel application, and the Max. parallel units is up to 16pcs.

iconsSmart Monitoring Platform

Remotely shutdown function

Thanks to the smart monitoring platform, Invermaxtron full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

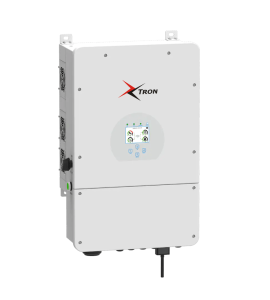

DS-56K-SG01LP1-US SUN-7.68K-SG01LP1-USEU 5-8kW Single Phase 2 MPPT Hybrid Inverter-min

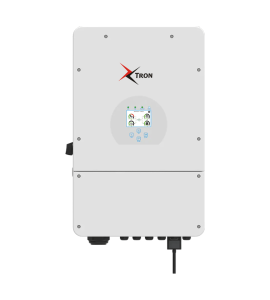

8kw-sg02.25-1-min
8kw-sg02.28

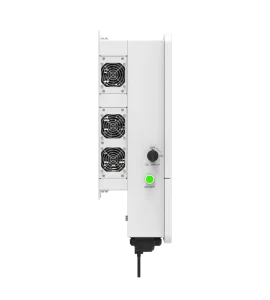

8kw-sg02.27

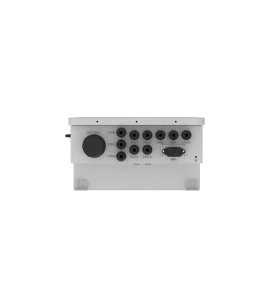

8kw-sg02.29
  • Colorful touch LCD, IP65 protection degree
  • 6 time periods for battery charging/discharging
  • Max. charging/discharging current of 190A
  • AC couple to retrofit existing solar system
  • Support storing energy from diesel generator
  • Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

Technical Specifications

ModelDS-5K-SG01LP1-USDS-6K-SG01LP1-USDS-7.6K-SG01LP1-US/EUDS-8K-SG01LP1-US/EU
Battery Input Data
Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

40~60

Max. Charging Current (A)120135190190
Max. Discharging Current (A)120135190190
Charging Curve

3 Stages / Equalization

External Temperature Sensor

Yes

Charging Strategy for Li-Ion Battery

Self-adaption to BMS

PV String Input Data
Max. DC Input Power (W) 6500 7800 9880 10400
Rated PV Input Voltage (V) 370(125～500）
Start-up Voltage (V) 125
MPPT Voltage Range (V)
 150-425
Full Load DC Voltage Range (V) 300-425 200-425
PV Input Current (A) 13+13 26+13 26+26
Max. PV ISC (A) 22+22 44+22

44+44
Number of MPPT Trackers

2
Number of Strings per MPPT Tracker

1+1

2+1

2+2
AC Output Data
Rated AC Output Active Power (W) 5000 6000 7600 8000
Max. AC Output Power (W) 5500 6600 8360 8800
AC Output Rated Current (A) 20.8/24 25/28.8 31.7/36.5 34.5/33 33.3/38.5 36.4/34.8
Max AC Output Current (A)
 22.9/26.4 27.5/31.7 34.8/40.2 38/36.3 36.7/42.3 40/38.3
Max. Continuous AC Passthrough (A)

50
Peak Power (off grid)
2 time of rated power, 10 S
Power Factor Adjustment Range
0.9-1
Rated Input/Output Voltage/Range(V)
120/240,208 0.88Un-1.1Un
Rated Input/Output Grid Frequency/Range
50Hz/45Hz-55Hz 60Hz/55Hz-65Hz
Grid Connection Form
2L+N+PE
Total Harmonics Current Distortion (THDi)
<3% (of nominal power)
DC Current Injection
<0.5% In

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Protection
Integrated
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection
Over Voltage Category

DC Type II / AC Type Ⅲ

Certifications and Standards

Grid Regulation

EN 50549, UNE 217002, NRS 097, IEEE 1547.1, SRD V2.0

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2, UL 1741

General Data

Operating Temperature Range (℃)

-40~60℃, >45℃ Derating

Cooling

Smart Cooling

Noise (dB)
≤30 dB

Communication with BMS

RS485; CAN

Weight (kg)

32
Cabinet Size (WxHxD mm)
420×670×233 (Excluding Connectors and Brackets)

Protection Degree

IP65

Installation Style

Wall-mounted

Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
