DS-60/70/75/80K-G | 60-80kW | Three Phase | 4 MPPT

The Invermaxtron 60-80K grid-connected inverter is suited for medium and large-scale commercial rooftops and ground-mounted solar PV system in which reliability and stability are important. the full series inverter has 30% DC input oversizing ratio and 10% AC output overloading ratio, offering a faster return on investment.

iconsSmart Monitoring Platform

Remotely shutdown function

Thanks to the smart monitoring platform, Invermaxtron full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

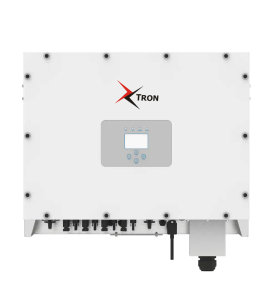

DS-30-80k-go2-2

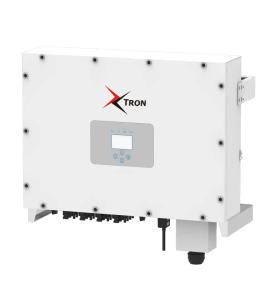

DS-30-80k-go2

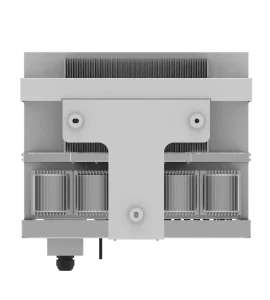

DS-30-80k-go2-3

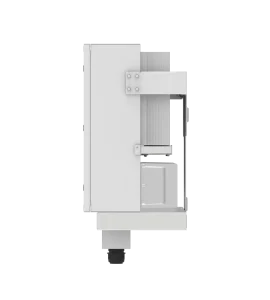

DS-30-80k-go2-4

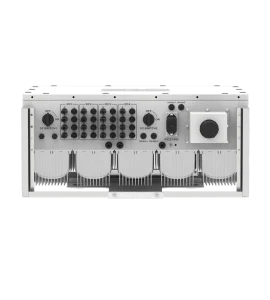

DS-30-80k-go2-5
  • 4 MPP tracker, Max. efficiency up to 98.7%
  • Zero export application, VSG application
  • String intelligent monitoring (optional)
  • Wide output voltage range
  • Type II DC/AC SPD
  • Anti-PID function (Optional)
  • AFCI function (optional)

Technical Specifications

ModelDS-60K-GDS-70K-GDS-75K-GDS-80K-G
Input Side
Max. DC Input Power(kW)789197.5104
Max. DC Input Voltage (V)1000
Start-up DC Input Voltage(V)250
MPPT Operating Range(V) 200~850
Max. DC Input Current(A)40+40+40+40
Max. Short Circuit Current (A)60+60+60+60
No.of MPP Trackers
4
No.of Strings per MPP Tracker3+3+3+34+4+4+4
Output Side
Rated Output Power(kW)60707580
Max. Active Power(kW)667782.588
Rated Output Voltage/Range (V)
3L/N/PE 220/380V, 230/400V 0.85Un-1.1Un (this may vary with grid standards)
Rated Grid Frequency(Hz)50 / 60 (Optional)
Operating PhaseThree phase
Rated AC Grid Output Current(A)90.9/87
106.1/101.5
113.6/108.7
121.2/115.9
Max. AC Output Current(A)
100/95.7
116.7/111.6
125/119.6
133.3/127.5
Output Power Factor0.8 leading to 0.8 lagging
Total Harmonics Current Distortion (THDi)
<3%
DC Injection Current(mA)<0.5%
Grid Frequency Range45~55 or 55~65 (Optional)
Efficiency
Max.Efficiency98.7%
Euro Efficiency98.3%
MPPT Efficiency>99%
Protection
DC Reverse-Polarity ProtectionYes
AC Short Circuit ProtectionYes
AC Output Overcurrent ProtectionYes
Output Overvoltage ProtectionYes
Insulation Resistance ProtectionYes
Ground Fault MonitoringYes
Islanding ProtectionYes
Temperature ProtectionYes
Integrated DC SwitchYes
Remote software uploadYes
Remote change of operating parametersYes
Surge protectionDC Type II / AC Type II
General Data
Cabinet Size (WxHxD mm)
700×575×297 (Excluding Connectors and Brackets)
Weight(kg)60
TopologyTransformerless
Internal Consumption<1W(Night)
Running Temperature-25~65℃, >45℃ Derating
Ingress ProtectionIP65
Noise Emission(Typical)≤50 dB≤55 dB
Cooling ConceptSmart cooling
Permissible Altitude (m)
2000
Warranty5 Years
Grid Connection Standard
IEC 61727, IEC 62116, CEI 0-21,CEI 0-16,EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25, G99, VDE-AR-N 4105, VDE-AR-N 4110
Operating Surroundings Humidity0-100%
Safety EMC/Standard      IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features
Display LCD 240 × 160
Interface RS485/RS232/Wifi/LAN
