Built-in SIM card slot

GPRS/3G Card

Main Features

• Allow to access historic data in centralized data center
• Built-in SIM card slot

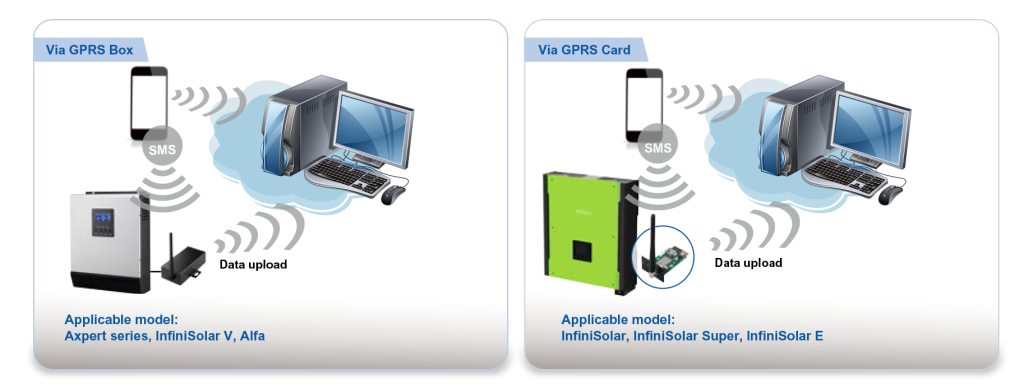

• Data transmission to data center via the Internet

• Warning notifications via mobile messenger
• Historic data log stored in centralized PC databas or Email
• Remotely monitoring inverter(s) data through the data server at any time

Technical Specifications

MODEL		GPRS Card
SIM Card		Micro card 12 x 15 mm
Power Input		12 V
Communication Port		Golden finger
Firmware Upgrade		Via network
Network Protocol		TCP/IP, UDP, HTTP, HTTPS, IPv4, SSL
Network Support		GPRS /GSM 850/900/ 1800/1900; •Multislot Class 12 •Full PBCCH support •Mobile Station Class B
Power Consumption		2 watt (max.)
Operating Temperature		-10°C~75°C
Operating Humidity		0~95%
Storage Temperature		-15°C~85°C
Dimension, D X W X H (mm)		23 x 47 x 15
